Machined Parts/Fabrication
Copper Part Machined Utilizing 4th Axis Milling Capabilities on HAAS ST30Y
Finished Copper Part
6061 Al, Design and Manufacture
Welded 3000 Series Al Enclosure
Finished Powder Coated Enclosure Highlighting Surface Finish
Large 6061 Al Plate Milled on a HAAS VF1.
Mill Turned Steel Parts Done on ST30Y
Grade 5 Titanium
304 SS Custom Electrode for Patented Dog Collar Device
Large Diameter Mild Steel.
Largest Part Personally Machined on ST30Y
Large Diameter Mild Steel Part that Highlights Surface Finish as Well as Mill/Turn Work.
6061 Al, Modeled Some Design Improvements and Machined to Spec. (Bottom View)
6061 Al (Top View)
6061 Al, Enclosure Body, Machined to Spec.
Enclosure Cont.
6061 Al, Enclosure Cap, Bottom View
Enclosure Cap, Top View
1018 Mild Steel, Gearbox Shaft Hub
6061 Al, Machined to Spec.
304 SS, Single Piece Milled Putter. Milled on HAAS VF2
Rapid Prototyping
3D Printed Proof of Concept Vegetable Slicer
Blade View of Slicer
Piston Driven Vacuum Gripper
Molded Silicone Gripper Head
Second Iteration of Piston Driven Vacuum Gripper (multiple pistons)
View of Silicone Molded Gripper Head
Venturi Driven Vacuum Gripper
3D Printed Molds of Various Geometries for Custom Silicone Parts
3D Printed Silicone Mold and Gasket for Pressure Vessel
Mechanical Designs

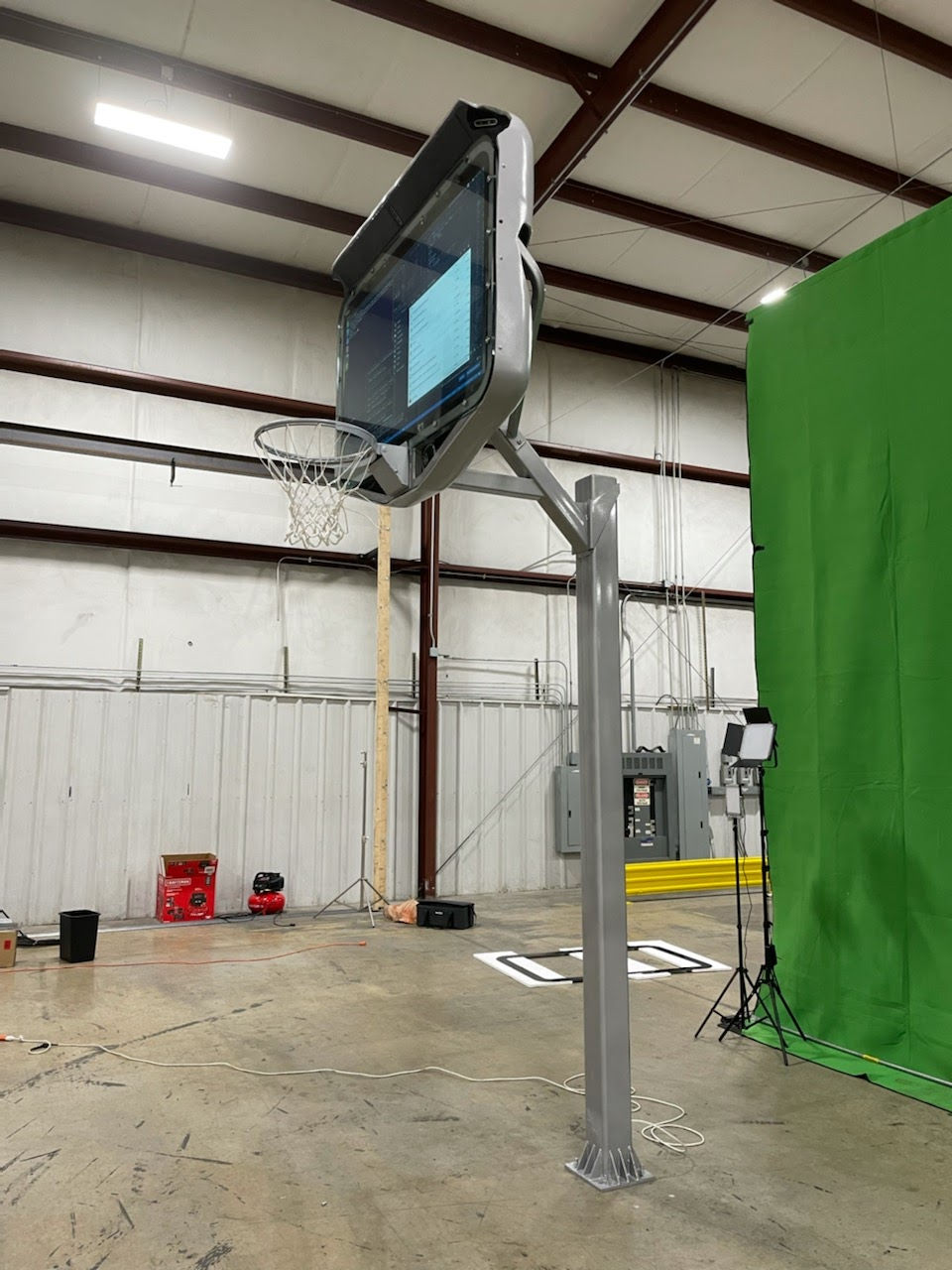

Design and Build 10 ft. Basketball Goal (Powder Coated Aluminum Construction)

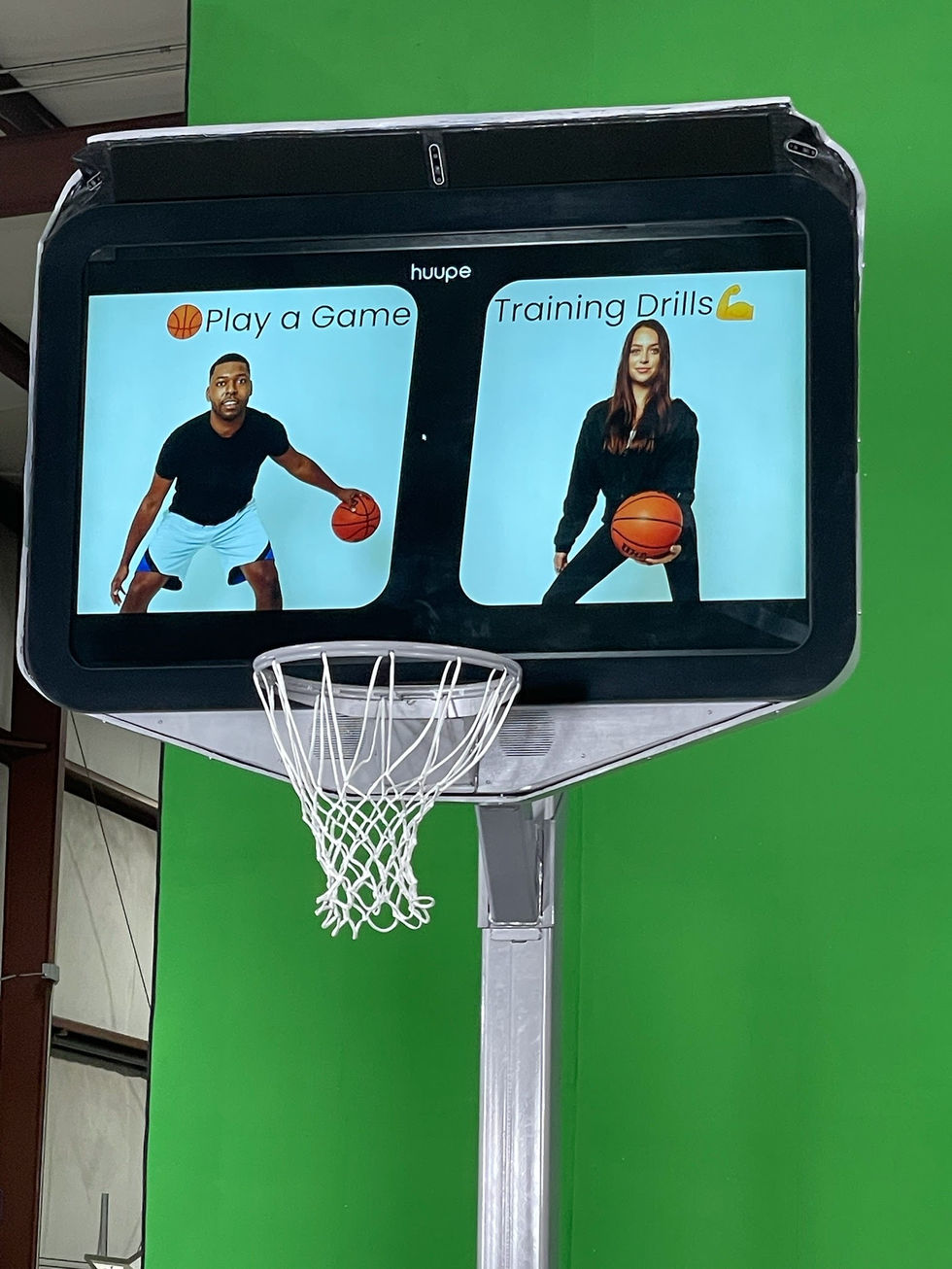

Interactive Basketball Goal with 65" Flatscreen TV
Sound Up!
304 SS Pressure Vessel Body
PEI Plastic Outer Shell Insulator
View of Thermocouple, Resistive Heating Element, and Fill Sensor Inside Pressure Vessel
Flute Repair Station Featuring Quick Change Tooling for Maximum Versatility
Primary Gold Color Scheme of the Flute Station
Alternate View of Flute Station
Double Wall Vacuum Insulated Tank
Insulated Tank with Cap
Inside View of Double Wall Tank
Patents
